Xilinx XC2S150E - High Performance FPGA

he Jul,10 2023 Xilinx

Xilinx XC2S150E is an FPGA device launched by Xilinx. As a member of the XC2S series, the XC2S150E has outstanding features in terms of performance, flexibility, and programmability. In this article, FMall will introduce the technical specifications, characteristics, and application fields of XC2S150E in detail. If you want to consult the price of Xilinx XC2S150E, please contact Fmall, and our team will reply to you in time.

XC2S150E is a device based on CMOS technology, which adopts Xilinx's Spartan-II series architecture. It has 150,000 available logic cells and contains a large number of logic resources, such as a Look-Up Table, registers and programmable interconnect resources. XC2S150E also has abundant I/O resources, which can realize high-speed data transmission and communication between devices and external systems.



1. The main technical specifications of XC2S150E include:

1) Logic resources: XC2S150E has 150,000 available logic units, each logic unit can realize multiple logic functions, and can realize arbitrary logic functions and circuit connections through programming.

2) Storage resources: XC2S150E has built-in a large amount of distributed RAM and fast buffer memory, which can meet complex data storage and processing requirements.

3) Clock management: XC2S150E supports multiple global clocks and local clocks, which can realize high-precision clock control and timing management to meet the timing requirements of various applications.

4) Communication interface: XC2S150E provides multiple high-speed communication interfaces, including commonly used LVCMOS, LVDS and SSTL, etc., and supports various data transmission protocols and standards.

For more technical specifications of XC2S150E, check XC2S150E Datasheet.


XC2S150E Datasheet

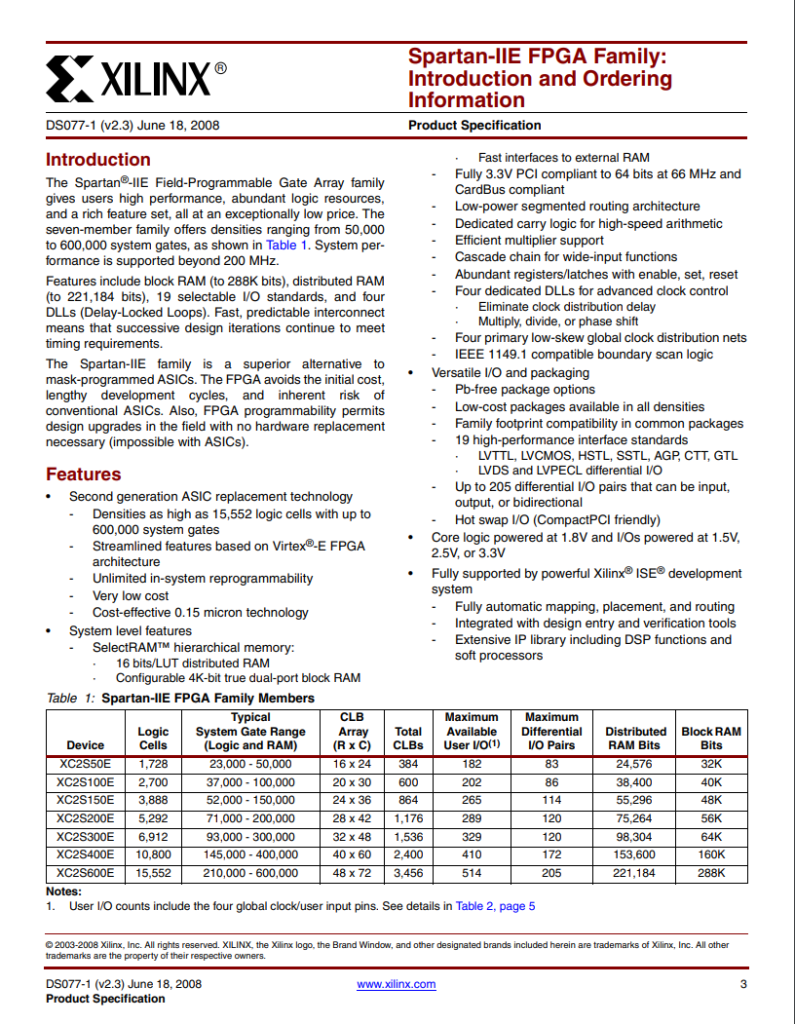

                           Partial screenshot of XC2S150E data sheet

2. XC2S150E has several unique features, making it an ideal choice for many applications.

1) High performance: XC2S150E provides excellent computing and processing capabilities with low power consumption, and is suitable for application scenarios requiring high-speed data processing and complex logic operations.

2) Programmability: XC2S150E adopts FPGA architecture, users can write custom logic circuits through HDL, to realize highly flexible and customizable functions.

3) Reconfigurability: XC2S150E has a non-volatile configuration memory, which can maintain the programming content after power off, and realize automatic configuration and reconfiguration of the device without external storage devices.

4) Reliability: XC2S150E adopts advanced circuit design and manufacturing process, has good anti-interference, anti-radiation, and stability, and can operate reliably in harsh environments.

XC2S150E has many models, and Fmall will list some of them for you:

XC2S150E-6TGGQGG144C, XC2S150E-7PQGG208C, XC2S150E-6PQGG208C, XC2S150E-6FG676I, XC2S150E-6TQ144C, XC2S150E-6TGGQGG144I, XC2S150E -7TGGQGG144C, XC2S150E-6PQGG208I, XC2S150E-6FG676C, XC2S150E-7FG676C.

3. XC2S150E has wide applicability in many application fields.

1) Communication and network: XC2S150E can be used to realize functions such as high-speed data communication, network routing, and protocol conversion, and is suitable for communication equipment, network switches and routers, and other fields.

2) Digital signal processing: XC2S150E provides powerful computing and data processing capabilities, which can be used to implement audio/video encoding and decoding, image processing, and signal filtering, and are widely used in audio and video equipment, medical imaging, and radar systems, etc.

3) Industrial automation: XC2S150E can be used to implement functions such as control logic, sensor interface, and data acquisition, and is suitable for industrial control, automated production lines, and robot control.

4) Automotive electronics: XC2S150E has high reliability and anti-interference performance, and can be used in applications such as vehicle networks, drive control, and safety monitoring in automotive electronic systems.

5) Aerospace: The reconfigurability and high performance of XC2S150E make it an ideal choice in the field of aerospace, and can be applied to tasks such as satellite communication, flight control, and image processing.

To sum up, Xilinx XC2S150E, as an advanced FPGA device, has outstanding features such as high performance, programmability, and reliability, and has broad application prospects in many application fields. It provides designers with rich logic resources and flexible programming capabilities, which can meet the design requirements of various complex systems and promote continuous development and innovation in the digital age.
